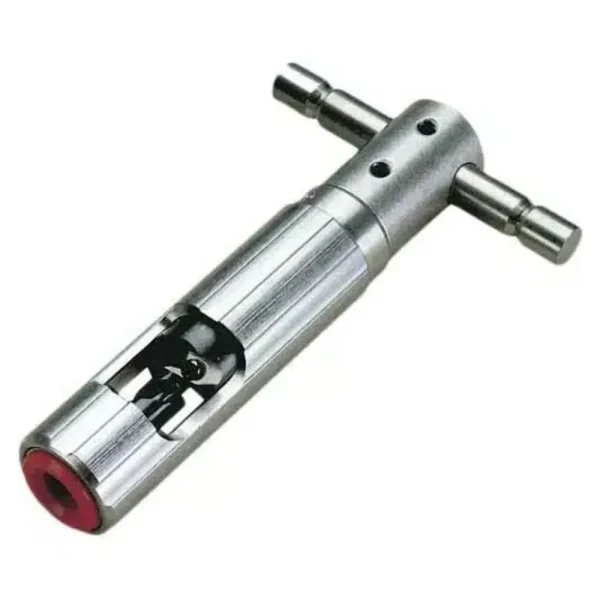

Ripley CST Series Coring, Stripping & Chamfering Tool with 3/8″ Drill Adapter
The Ripley CST (Coring and Stripping Tool) is a versatile, all-in-one solution designed to core dielectric foam, bevel the aluminum sheath, and strip the polyethylene jacket from trunk and distribution cables. It can be operated manually or with a drill for efficiency.
Key Features:
- Multi-Function Design: Strips the sheath and cores the dielectric in a single, precise operation.
- Durable Construction: Made entirely of metal with color-coded guide sleeves for easy identification.
- Precision Cutting: Heat-treated sheath cutting blade delivers a smooth, beveled edge and is replaceable.
- Adjustable Strip Length: Strip stops available for lengths ranging from 0.5″ to 2″ (12.7 to 50.8 mm).
- Flexible Operation: Standard models include a built-in 3/8″ drill adapter with a “T” handle, while ratchet models feature a separate 3/8″ drill adapter for manual or drill use.
Compatibility:
- Cable Access: End
- Max. Coax Cable Size: 1160
Specifications:
- Length: 6.88″ (175 mm)
- Weight: 13 oz (369 g)
