TOPCON RL-H5A – PS.RB 1021200-LSB20
Self-Leveling Rotary Laser Level, Multi-Use Receiver Package |
Includes: LS-B20 Multi-Use Receiver and Alkaline Batteries
|
| Next Generaton Self-Leveling Construction Laser |
| The Topcon RL-H5A auto-leveling laser level combines precision, versatility and value in one job site tough package. Its super-fast self-leveling motors are accurate to +/-10 arc seconds meaning whether you’re checking grade or setting batter boards you are going to be accurate the first time. Its high-power 2.4mW diode means you have a 2,600′ diameter working range (with detector use) making it a great reference for machine mounted receivers. The 635nm visible beam means it can even be used for interior alignment applications from setting piers and decking, to wall and even cabinet alignment. All of these features makes the Topcon RL-H5A Laser more than twice the laser offered by anyone else. |
Topcon RL-H5A TOP FEATURES
- Self-Leveling Horizontal Beam
- Long Range Operation 2,600 ft diameter
- High Horizontal Accuracy 1/16-inch @ 100-feet
- Simple, intuitive manual slope capability
- Tough IP66 Rating – Dust and Water Rating
- Self-Leveling Range ± 5 degrees
- Alkaline battery life – 100 hours
- Out of Level Notification
|

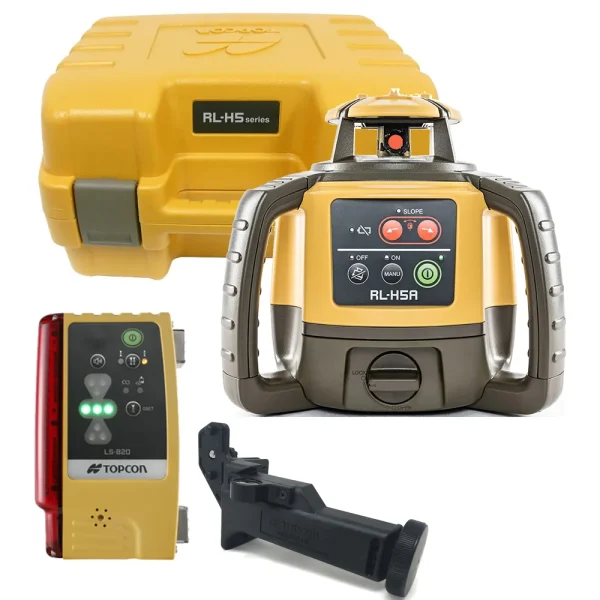

| Topcon RL-H5A-LSB20 (1021200-LSB20) Laser Kit INCLUDES |
- RL-H5A Horizontal Laser
- LS-B20 Multi-Use Laser Receiver Sensor with Magnetic Mount 1063525-03
- Receiver Rod Clamp Holder 100 (1011990-01)
- POWERED BY (4) D-Cell Alkaline Batteries ((NOT INCLUDED))
- Rugged Hard Shell Carrying Case
- 5-Year Warranty Guarantee
|
|
MULTI-PURPOSE LASER
Grading, excavating and general construction projects are perfect applications for the RL-H5A. With the added “Slope Matching” feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the Topcon RL-H5A a great match with any machine mounted laser sensor.
EASY TO USE
With electronic self-leveling you press the power button and go right to work in seconds. If the TOPCON RL-H5A gets disturbed on the job it re-levels itself automatically. The Self-Leveling motors are accurate to ± 10 arc seconds.
LONG RANGE OPERATION
Need to shoot elevations up to 1,300 feet from your laser? No problem, this TOPCON RL-H5A has a workable power and range of 2,600 feet diameter on the jobsite.
ALL WEATHER DEPENDABILITY
With the IP66 rating, the TOPCON RL-H5A is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.
|
|
5-YEAR GUARANTEE
The TOPCON RL-H5A Laser comes with a FIVE YEAR GUARANTEE. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.
|
| Topcon RL-H5A Laser SPECIFICATIONS |
| Accuracy |
1/16-inch @ 100-feet |
| Self-Leveling Range |
± 5 degrees |
| Working Range diameter |
2,600 feet |
| Rotation Speed |
600 RPM |
| Light Source |
Visible Red Laser 635NM |
| Laser Class |
CDRH(FDA) IIIa JIS/IEC 3R |
| Dust / Water Rating |
IP66 |
| Operation Time |
Rechargeable : 60 hours
Alkaline: 100 hours |
| Operational Temp |
-4ºF to 122ºF |
| Size |
7.0 x 7.7 x 8.5 in |
| Maximum Power Output |
2.4mW |
| Tripod Screw Thread |
5/8-11 |
|
| Topcon RL-H5A Laser Series COMPARISON |
| New Series |
RL-H5A RB |
RL-H5A DB |
RL-H5A RB |
RL-H5A-LSB20 |
RL-H5B DB |
LASER – TOP COMPONENT OVERVIEW
|
| New Model |
1021200-14 |
1021200-15 |
1021200-16 |
1021200-LSB20 |
1021200-33 |
| Discontinued Models |
1021200-06 |
1021200-07 |
1021200-08 |
1021200-31 |
| Receiver |
LS-80L |
LS-80L |
LS-100D |
LS-B20 |
LS-80L |
| Batteries |
Rechargeable |
Dry / Alkaline |
Rechargeable |
Alkaline |
Dry / Alkaline |
| Remote Control |
NO |
NO |
NO |
NO |
NO |
| LASER SPECIFICATIONS |
| Source |
635nm Class 2 |
635nm Class 2 |
635 nm Class 2 |
635nm Class 2 |
635 nm Class 2 |
| Range (Diameter) |
2,600-feet |
2,600-feet |
2,600-feet |
2,600-feet |
1,300-feet |
Accuracy @ 100 feet
|
1/16-inch
|
1/16-inch |
1/16-inch |
1/16-inch |
1/8-inch |
| Rotation Speed |
600 RPM |
600 RPM |
600 RPM |
600 RPM |
600 RPM |
| Slope |
Manual 1 Axis |
Manual 1 Axis |
Manual 1 Axis |
Manual 1 Axis |
NO |
| Manual Slope Range |
± 5 degrees |
± 5 degrees |
± 5 degrees |
± 5 degrees |
| Self-Leveling |
± 5 degrees |
± 5 degrees |
± 5 degrees |
± 5 degrees |
± 5 degrees |
| Rechargeable Battery |
60 hours |
60 hours |
| Dry/Alkaline Battery |
100 hours |
100 hours |
100 hours |
100 hours |
100 hours |
| Battery Run Charge |
NO |
NO |
| Enviornment |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
| Warranty |
5 YEARS |
5 YEARS |
5 YEARS |
5 YEARS |
5 YEARS |
| DISCONTINUED VERSION – OLD LASER INFORMATION |
| Old Series |
New |
RL-4HC DB
|
RL-4HC RB |
NEW |
| Old Model |
New |
313980752 |
313980772 |
NEW |
| All laser prices are discounted in shopping cart |
|
| INCLUDED Topcon LS-B200 Receiver Sensor OVERVIEW |
Topcon LS-B20 Machine Control Laser Receiver 1063525-03 – Non-Wireless
Topcon LS-B20 Machine Control Laser Receiver OVERVIEW

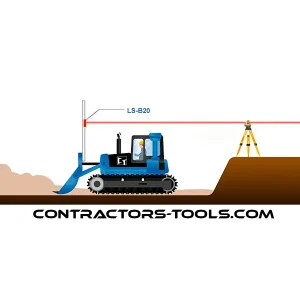

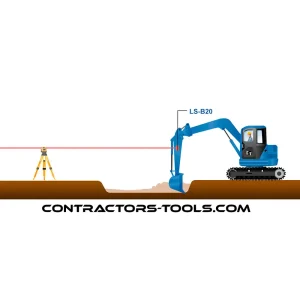

The LS-B20 laser receiver delivers a versatile, low cost indicate solution for grade checking and machine control grade applications. Although similar to the LS-B3, it is much smaller and weighs 66% less…the lightest weight in its class! With its integrated magnetic mount, the LS-B20 can be easily installed on a vast array of machines.
- New – Design
- New – Bright Directional LED Only
- New – ISO13766-1
- Machine control and grade checking capability
- One-touch “On-Grade” matchine
- Lightest weight in its class…about 1 pound!
- Coarse to fine grade for machine control
- 11 LCD grade channels with 5 gradual triangles for out of grade indication
- 270° detection range
- Red and green Bright LED indicators lights
|
