Availability: 8 in stock

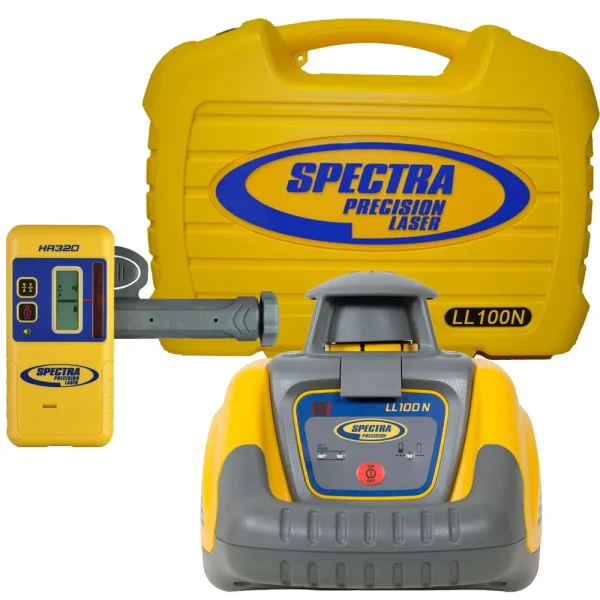

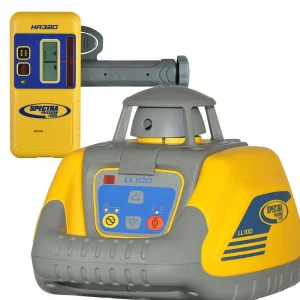

| SPECTRA Precision LL100N Automatic Self-Leveling Laser Kit This Spectra LL100N is New in factory sealed box Includes Laser, HR320 Receiver and Small Carrying Case |
|||||||||||||||||||||||||||||||||||||
| LL100N A New Standard in Affordable Professional Laser Tools | |||||||||||||||||||||||||||||||||||||
| 1 Year Over the Counter Free Laser Replacement Warranty. If Laser Unit fails in the first year – send it back for a new one. |
|||||||||||||||||||||||||||||||||||||
| Spectra Precision Laser LL100N OVERVIEW | |||||||||||||||||||||||||||||||||||||
|

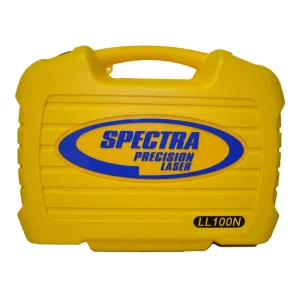

The Spectra Precision LL100N is a leveling crew in a case for the small contractor. A complete system is contained in a single hard-shelled, portable carrying case containing the laser, receiver, and rod clamp, for easy transportation, storage, and use. Automatic, self-leveling ensures fast, accurate setups. Easy, one-button operation requires minimal training. The Spectra LL100N Laser is capable of handling a wide variety of elevation control applications. Versatility is added with single-axis manual slope capability for setting out driveways, ramps, and residential drainage lines. It is rugged enough for the toughest jobsite and designed to survive a 3 foot drop onto concrete. The LL100N is backed by a 1-year instant 100% over the counter replacement warranty. Limited second and third year instant, over the counter, exchange warranty for 1/2 the retail price. This is where Spectra Precision Laser is a leader with the best warranty available for a laser in this construction category. |
|||||||||||||||||||||||||||||||||||||
| Spectra Precision Laser LL100N : NEW LASER IMPROVEMENTS | |||||||||||||||||||||||||||||||||||||
| The new and improved version LL100N Laser has a improved insert made of brass. This bras insert eliminates concerns about damaging the old style plastic threads and engages easer with the tripod. | |||||||||||||||||||||||||||||||||||||
| The second change that Spectra Precision made to the LL100N is they simplified the operation of the tool by making the keypad very user friendly. They new one button keypad makes the operation of the laser super easy and eliminates any confusion. | |||||||||||||||||||||||||||||||||||||
| If the single axis manual slope is still required, it can still be done with the optional RC601 remote control. | |||||||||||||||||||||||||||||||||||||
| The working range of the LL100N has been increased to 1,150 feet. This new improved working range allows use on larger projects. The user should keep in mind the accuracy when working at the limits of the suggested range of use. | |||||||||||||||||||||||||||||||||||||
| Spectra Precision LL100N Laser FEATURES and BENEFITS | |||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
| Spectra Precision LL100N Laser APPLICATIONS | |||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
| Spectra Precision LL100N Laser Kit INCLUDES | |||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
| Spectra Precision LL100N Laser Transmitter SPECIFICATIONS | |||||||||||||||||||||||||||||||||||||
| Laser Source | 650 nm visible – Class 2 | ||||||||||||||||||||||||||||||||||||
| Laser Accuracy | ±1/8 in at 100 ft | ||||||||||||||||||||||||||||||||||||
| Operating Range | 1,150 foot diameter with receiver HR320 | ||||||||||||||||||||||||||||||||||||
| Self-leveling Range | ±5 degrees | ||||||||||||||||||||||||||||||||||||
| Compensation Method | Electronic self-leveling | ||||||||||||||||||||||||||||||||||||
| Drop Height on Concrete performance | 3-foot | ||||||||||||||||||||||||||||||||||||
| Single Axis Manual Slope Mode | Yes | ||||||||||||||||||||||||||||||||||||
| Out-of-level warning | Rotor stops, laser shuts off, red out-of-level LED flashes | ||||||||||||||||||||||||||||||||||||
| Power source | 2 x “D” Alkaline Batteries | ||||||||||||||||||||||||||||||||||||
| Battery life | 80 hours Alkaline | ||||||||||||||||||||||||||||||||||||
| Battery Status LED | Flashing red LED | ||||||||||||||||||||||||||||||||||||
| Rotation speed | 600 RPM | ||||||||||||||||||||||||||||||||||||
| Tripod Mount | (Horizontal and Vertical): 5/8” x 11 | ||||||||||||||||||||||||||||||||||||
| Operating temperature | 23 °F to 113 °F | ||||||||||||||||||||||||||||||||||||
| Storage temperature | -4 °F to 158 °F | ||||||||||||||||||||||||||||||||||||
| Water resistant | Yes, and IP54 sealing | ||||||||||||||||||||||||||||||||||||
| Size | 8.5 inch Length × 6.7 inch Width × 6.0 inch Height | ||||||||||||||||||||||||||||||||||||
| Weight | 3.3 lbs | ||||||||||||||||||||||||||||||||||||
| Warranty | 3 Year Limited with Instant Exchange | ||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
| Spectra Precision HR320 Laser Receiver OVERVIEW (Included with this Laser Package) |
|||||||||||||||||||||||||||||||||||||

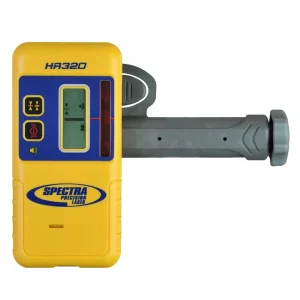

The Spectra Precision® HR320 Laser Receiver is a durable laser receiver for exterior leveling applications. LCD’s on the front and back display a 5 segment grade arrow that indicates grade position. A loud beeper is designed to be heard on noisy job sites. Fine and medium accuracies are selectable to meet various applications and conditions.
|
|||||||||||||||||||||||||||||||||||||
