Spectra Precision LL500-3 with HL700 Receiver (METRIC package)
Package >> Laser, HL700 Receiver, Tripod, RodMETRIC, Case
Longest Range, Highly Accurate Leveling Solution
|
| Spectra LL500-3 Key Features and Benefits |
- 1,600 ft (500 m) working diameter which increases productivity by reducing need for
multiple set-ups on a large job site
- Self-leveling with built-in ‘out-of-level’ shut off that maintains accuracy over the entire work
area, and minimizes errors
- High accuracy laser, 1/16 in per 100 ft (1.5 mm per 30 m) with temperature compensation
provides highly stable, repeatable accuracy even under large temperature changes
- Uses alkaline or rechargeable batteries–so you are less likely to run out of power and the unit keeps
working with no downtime due to power loss
- Visible ‘spotting’ beam for determining receiver mounting placement making it faster to find the
on-grade position
- Comes with a choice of HL700 or CR600 receivers allowing you to choose the best option
to suit your applicationvers allowing you to choose the best optionto suit your application
|
| LL500-3 General Construction Applications |
- Checking/setting elevations, concrete forms, footings, and foundations for medium to large
commercial jobs
|
| LL500-3 Machine Control Applications |
- Excavating, digging footings, and septic tanks with CR600 receiver
- Sub-base leveling with skid steer loaders and CR600 receiver
- Longer range machine control applications
|

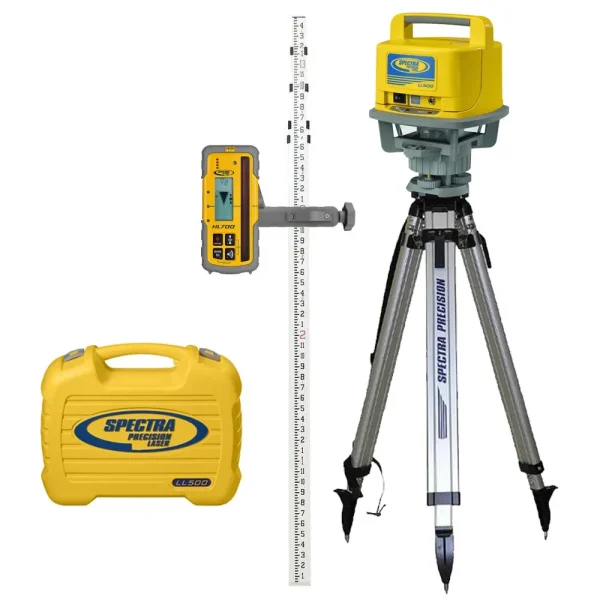

| Spectra Precision LL500-3 Laser Package INCLUDES |

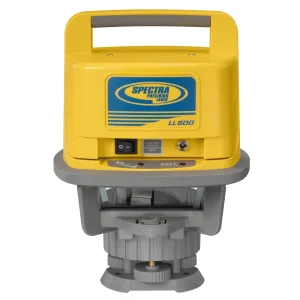

- LL500Laser Level
- HL700Receiver with RodClamp C70
- 15-foot Adjustable GradeRodMETRIC GR153

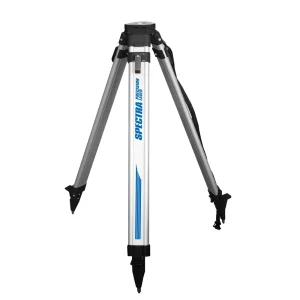

- Heavy-Duty AluminumTripod 2161
- (4) D Cell Alkaline Batteries
- Small CarryingCase
- Operating Manual
|
| Included HL700 Receiver DETAILS |
|

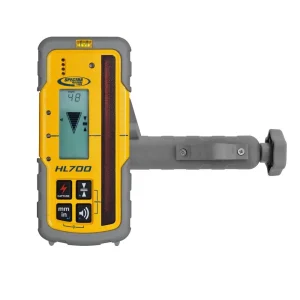

HL700 Digital Readout Receiver
Highly Versatile Receiver for Basic and
Advanced Leveling and Aligning
|
| Applications |
| ■ |
Checking Elevations |
■ Digging footings |
| ■ |
Basement excavation |
■ Setting forms |
| ■ |
Digging septic tanks |
■ Checking sub-base materials |
| ■ |
Checking foundations
|
■ Screeding concrete |
| Key Features and Benefits |
| ■ |
Digital Readout of Elevation provides a numeric display of ± 2 inches (± 5 cm) and shows exactly how far the elevation is from on-grade |
| ■ |
A large 5 inch (12.7 cm) reception height, more than double the industry standard, allows quick acquisition of the laser beam |
| ■ |
Unique anti-strobe sensor stops construction strobe lights from setting off the receiver, and eliminates phantom strikes for easier identification of true laser beam signals |
| ■ |
Multiple on-grade sensitivities to customize accuracy needs to application |
| ■ |
Designed to survive the tough construction site conditions; it is totally waterproof and can withstand a drop of 10 feet (3 meters) onto concrete |
| ■ |
Simultaneous elevation LEDs signal in low light levels and over a longer range provide easier reading in poor light |
| ■ |
Two clamp positions for cut/fill or excavation. Excavation mode puts more reception height and elevation information above grade for higher utilization in digging and staking applications |
| ■ |
Three-year “No Excuses” warranty |
| ■ |
C70 Adapter with Bubble Vial included |
|
|
